evoARC
Revolutionize Pipe Scanning with a High-Precision Non-Contact Index Encoder
No more line marking. No more wasted time. Just accurate, consistent, and high-speed data acquisition—every time.
evoARC
Productivity
- Eliminate Line Marking
- Faster Data Acquisition.
- Minimize Rework.
- Backward Compatibility
Confidence
- Consistent Data
- Zero Data Mismatch
- Improved Reliability
- Intuitive Setup and Operation
Simplicity
- Ergonomic Design
- No Maintenance Hassles
- User-Friendly Setup
- Comprehensive Coverage
WHAT SETS evoARC APART?

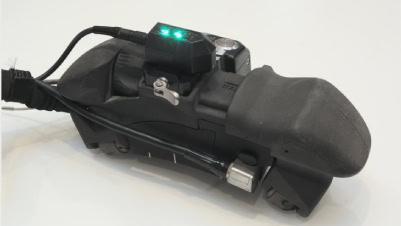

Seamless Integration with Existing Scanners
evoARC easily attaches to third-party scanning systems, enabling you to maximize your current scanner assets. There’s no need for new equipment—simply attach evoARC to your existing setup and unlock advanced capabilities for more accurate and consistent results.
Enhanced Precision for Reliable Data
With evoARC, you’ll achieve pinpoint accuracy every time. The system’s visual LED indicators provide immediate feedback on key scan positions (12, 3, 6, and 9 o’clock), ensuring precise alignment and eliminating margin for error. This high-precision capability results in higher quality inspections and reduced rework.
Automate and Scale Your Inspection Processes
SMARTER SCANNING STARTS WITH evoARC
Transform the way you inspect—seamless integration, zero maintenance, total precision.
KEY FEATURES OF evoArc

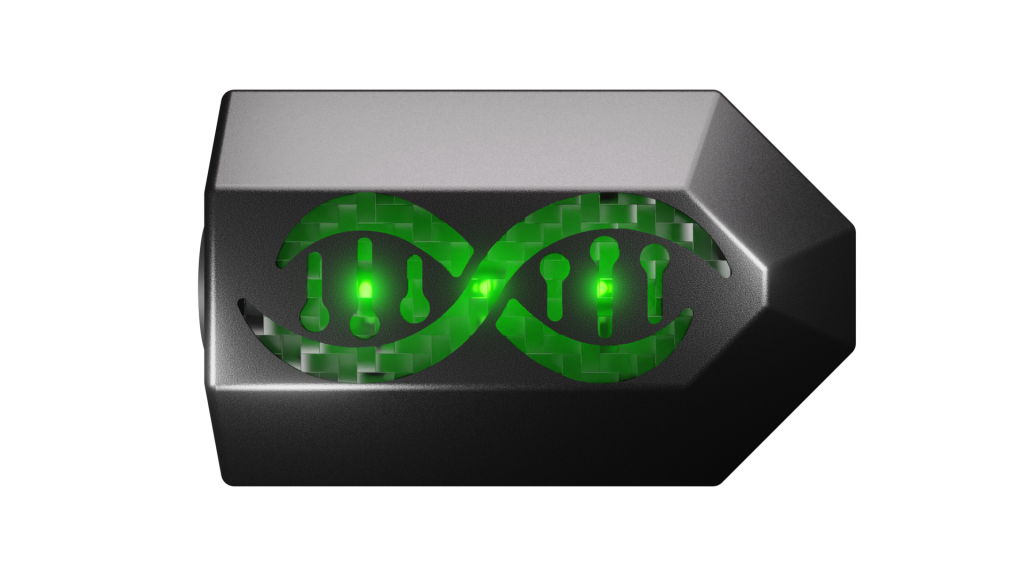

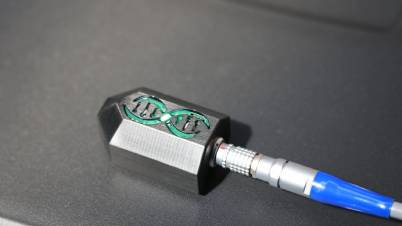

Non-Contact Encoding
High-Resolution Tracking
Visual LED Position Indicators
Quickly locate 12, 3, 6, and 9 o’clock with visual feedback—no guesswork, no misalignment.
Adapt for Weld Inspections
Can be used with single probe mounts like A10 and A31 models for
circumferentially encoded weld inspection.

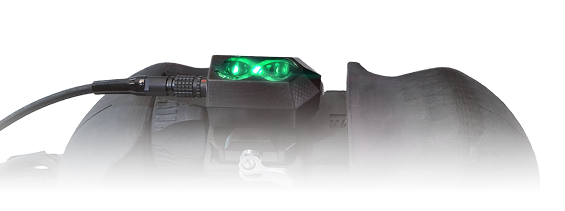

Rugged Tool-free Mounting
Built to MIL-STD-810G standards, attach and remove evoARC in
seconds with an intuitive, screw-less setup.
Universal Compatibility, Seamless Integration
evoARC supports all PAUT acquisition systems using Lemo 1K.316 and Quadrature Encoding—making it easy to drop into your existing workflow without extra adapters or upgrades.
Lorem ipsum dolor
Lorem ipsum dolor sit amet consectetur. Dignissim vel viverra quis risus non dignissim massa ut interdum. Id quam lectus commodo tellus in aliquam.
SPECIFICATIONS
Details
| Size (mm) (L x W x H) | 50 x 30 x 24.5 |
| Weight | 53g + Cable |
| Cable Length | 5m straight connection, 7.5m & 10m length, or angle connections are available on request. |
| Power | 5V |
| Encoder Channel | 2 (EN2) |
| Encoding Type | Quadrature 1/2 |
| IP Rating | Tested to IP67 |
| Maximum Angular Rate | 180°/s |
| Operating Temperature | -5ºF – 140ºF (−15ºC – 60ºC) |
| Storage Temperature | -40ºF – 185ºF (−40ºC – 85ºC) |
| Shockproof Rating | Designed to MIL-STD-810G |
| Maximum Angle from Horizontal | 70º, Unit will not give reliable data beyond this point. |
Compatibility
- Evident SX, X3, MX2, X4
- Eddify Mantis, Eddify Gekko
- Any unit using the Lemo 1K.316 standard encoder cable supporting quadrature
Mount
- Mountable on Flexoform
- Other specific PAUT Probes (A10, A31, A32, A12, etc…) & Scanners – Custom Mounts made on request
Upgrade your scanner with dual-axis encoding—no pipe markup needed.
Case study
Offshore Rope Access Piping Inspection
NDE Solutions utilized evoARC for an offshore rope access job, inspecting 24″ diameter piping. In a prior 21-day campaign without evoARC, the team was able to inspect an average of 6 meters per day. However, during a second 21-day campaign using evoARC, they achieved an impressive average of 24 meters of inspection coverage per day. This fourfold increase in productivity showcases evoARC’s ability to significantly enhance efficiency, even in challenging offshore environments.
Onshore Piping Inspection
In an onshore piping inspection project, evoARC proved to be a game changer. Over a 14-day campaign, the contracting company saw a significant increase in profit, thanks to the increased productivity enabled by evoARC. Additionally, the asset owners benefited from cost savings due to faster inspection processes. This case demonstrates the shared value that evoARC brings, offering both the inspection company and asset owners significant gains in productivity and profitability.
Frequently Asked Questions
What else is supplied with the evoARC?

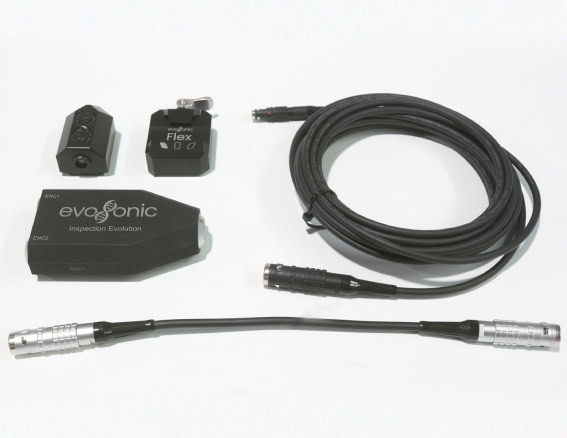

The evoARC is supplied with everything you need to get to work: A Flexoform mount,16.4′ (5m) cable, Splitter & cable. All supplied in a Nanuk 915 hard case.
Which scanners is evoARC compatible with?
evoARC is designed to integrate seamlessly with third-party scanners, including systems like the Olympus FlexoForm. It supports any PAUT acquisition system using Lemo 1K.316 and Quadrature Encoding—so you can upgrade your existing tools without investing in new hardware.
How does evoARC improve inspection productivity?
evoARC significantly reduces setup time, improves scan accuracy, and eliminates common causes of rework. Users have reported up to 4x faster inspection coverage, especially in complex environments like offshore rope access or large-diameter piping.
Is evoARC durable enough for harsh field conditions?
Yes. evoARC is built to MIL-STD-810G standards, meaning it’s engineered for rugged use in extreme conditions. Electronics are encased in resin and it’s been tested to IP67. It’s a non-contact encoder, so there should be minimal wear and tear, and no maintenance is required.
Is evoARC easy to install?
Yes! evoARC features a completely toolless, screwless mounting system for fast, easy installation in the field—no fiddling with tools or fasteners required.
Testimonial
Schedule a demo
